Overview
The Optrel Panoramaxx Laser Series is a range of panoramic welding helmets for laser-assisted metal fabrication. Choose Passive Laser, Hybrid or Hybrid CLT based on whether you need passive laser protection or an auto-darkening filter for both laser and conventional arc welding.
Key details
- SeriesPanoramaxx Laser
- Primary applicationLaser welding and conventional welding
- HeadgearOptrel IsoFit
- Respiratory optionCompatible with Optrel Swiss Air
Choosing your helmet

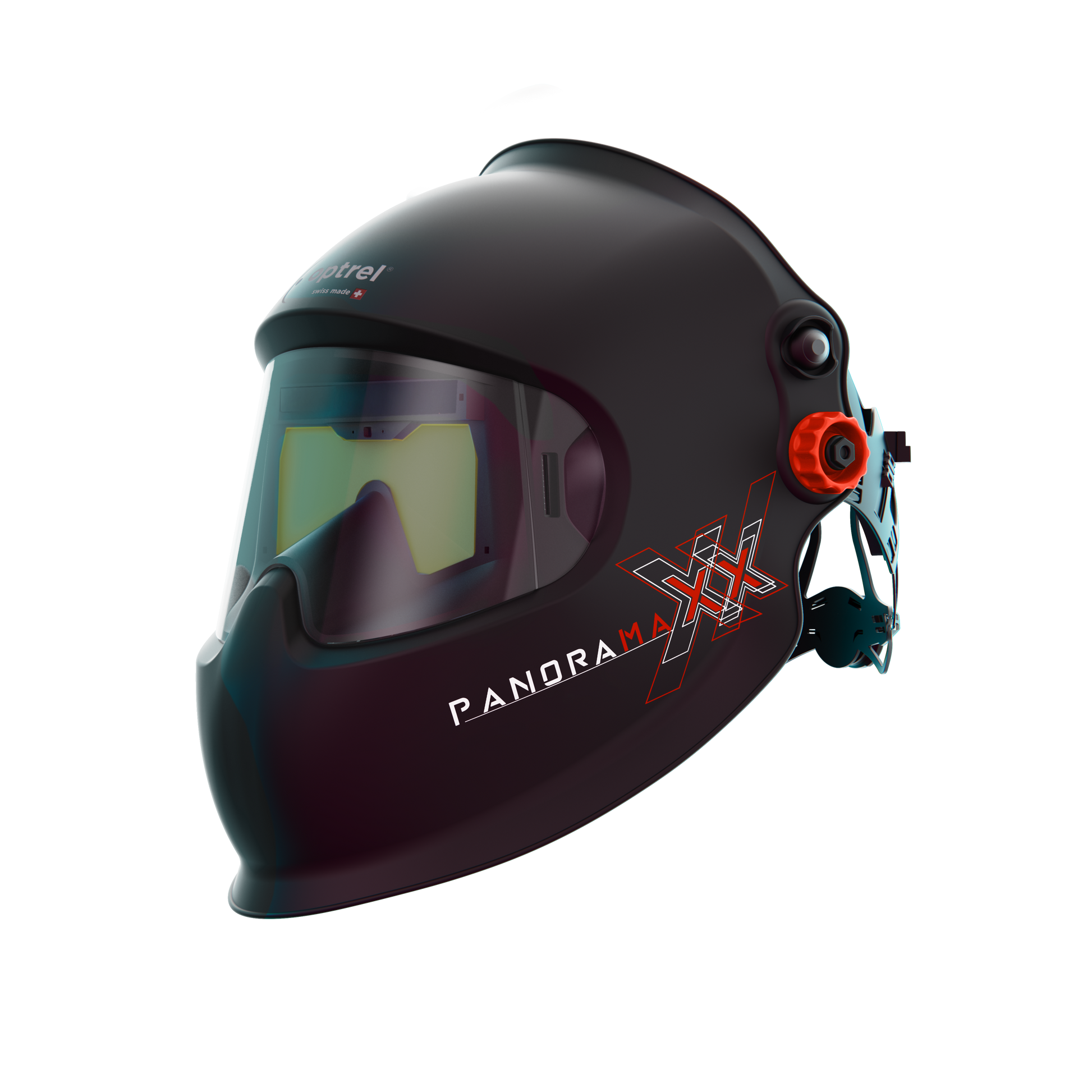

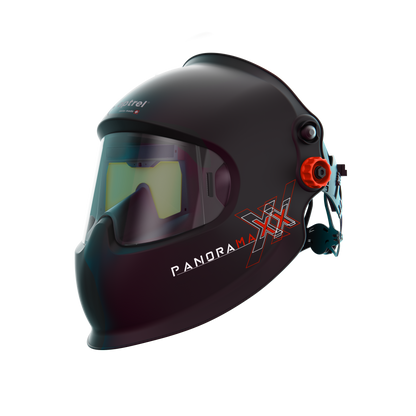

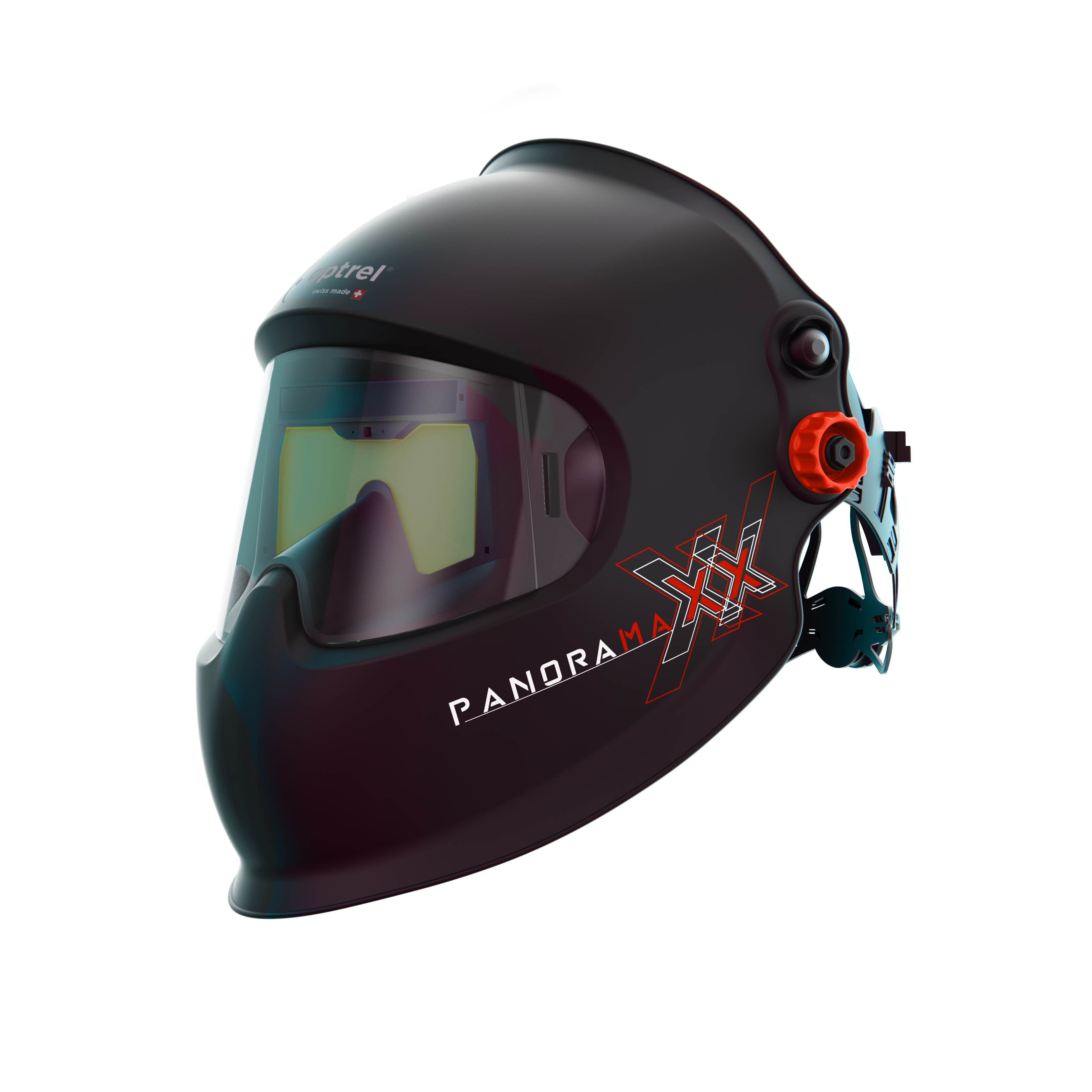

- Passive LaserPart 1010.300. Passive laser-welding helmet for users who do not need an auto-darkening filter.

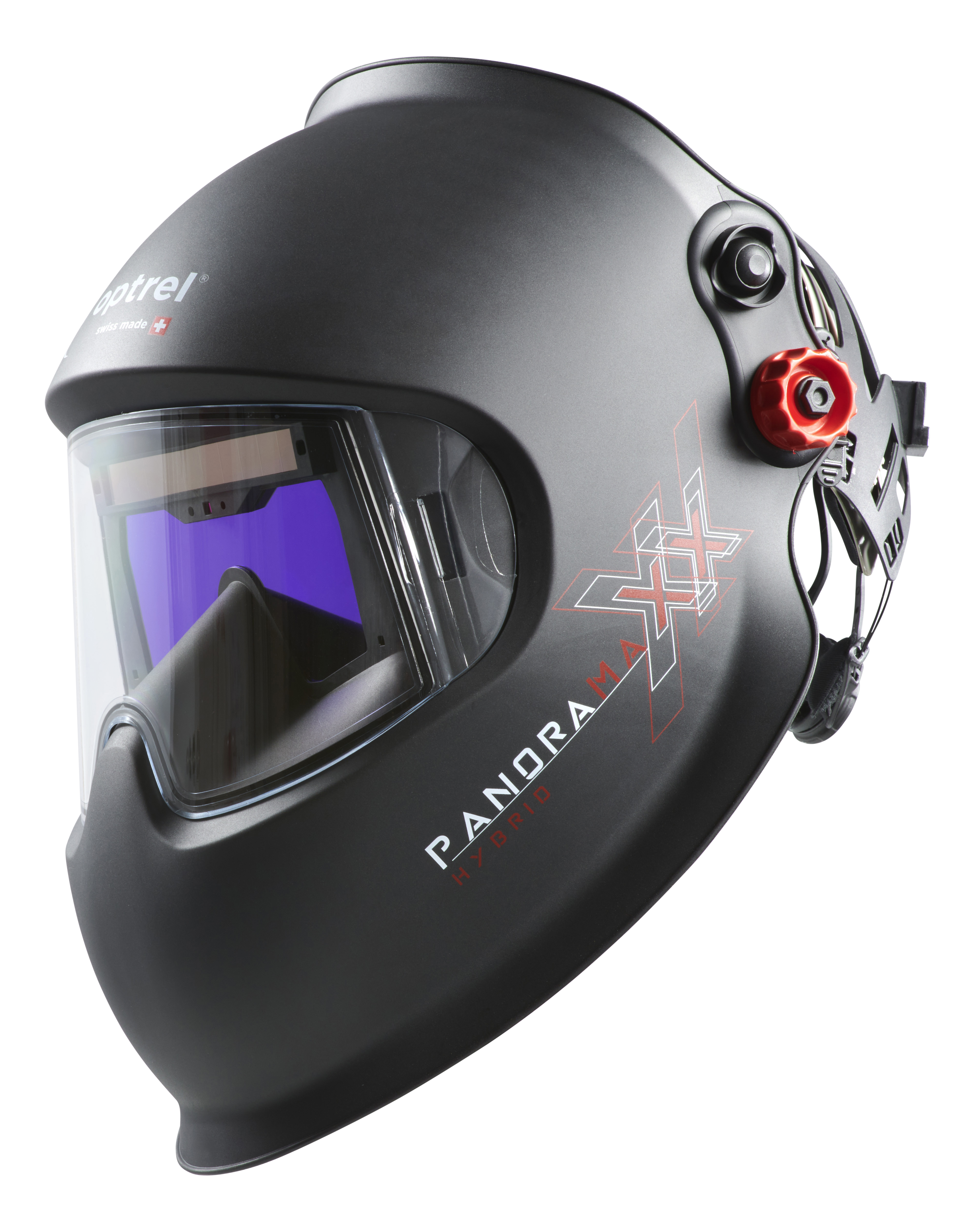

- HybridPart 1010.301. Auto-darkening laser/welding helmet with light state 3.0, ShadeTronic 5–13 and manual shade 4–9.

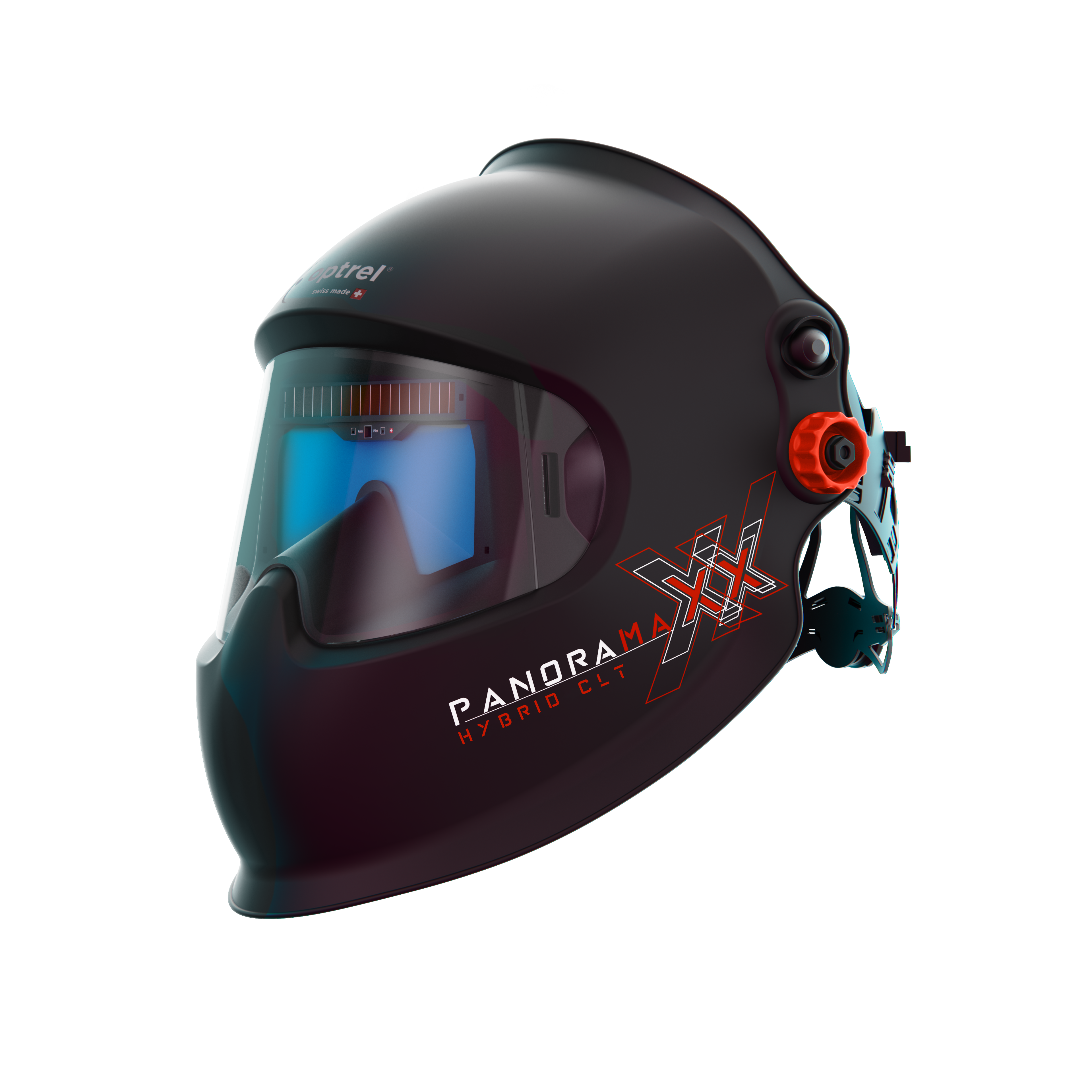

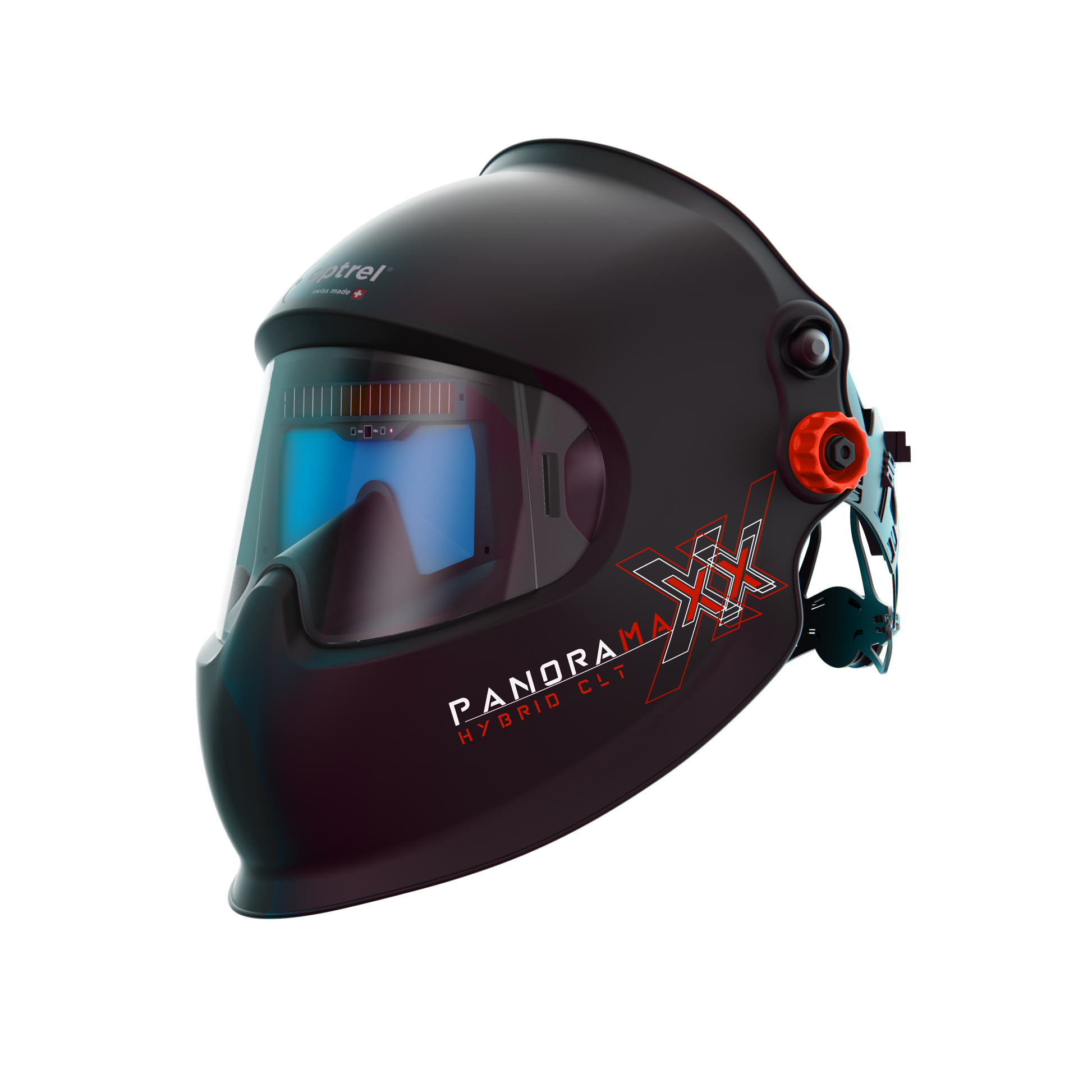

- Hybrid CLTPart 1010.302. Crystal Lens Technology version with light state 2.5, ShadeTronic 4–12 and manual shade 3–8.
The Hybrid and Hybrid CLT variants also include grinding mode, FadeTronic and adjustable sensitivity for work that moves between laser, arc-welding and preparation tasks.
Need respiratory protection?
These standalone Laser Series helmets can be used with the Optrel Swiss Air PAPR System. For a headtop that connects directly to e3000X, choose the Panoramaxx Pure Air Laser Series instead.
Protection
Optrel lists the Panoramaxx Laser Series for laser eye and face protection to ISO 19818-1. The Hybrid and Hybrid CLT auto-darkening welding filters are additionally classified to EN 379. Compliance and optical specifications vary by variant, so select the exact helmet for the intended laser and welding process.
Protection & compliance
- Eye & face protection
-
- ISO 19818-1Laser eye & face protectionApplies to the Panoramaxx Laser Series. Exact laser-protection markings and optical density depend on the selected variant.
- EN 379:2003 + A1:2009Automatic welding filterApplies to the Hybrid and Hybrid CLT auto-darkening variants. It does not apply to the Passive Laser variant as an ADF classification.
